Single Garage / Opening up to 9 feet
Installation Included
- Aerospace-grade 6063-T5 aluminum construction for strength and durability.
- EPDM sealing system along sill, sides, and between panels for full watertight protection.
- Modular 3-panel design — expand height by adding panels as needed.
- Permanent side channels allow quick, secure deployment when flooding is imminent.
- Clamp or bolt compression system ensures tight sealing under pressure.
- Stainless steel hardware resists corrosion and coastal conditions.
- Professional installation and training included with every system.
- Reusable and low-maintenance — rinse, dry, and store after each use.
- Designed, tested, and engineered for residential and small commercial use.

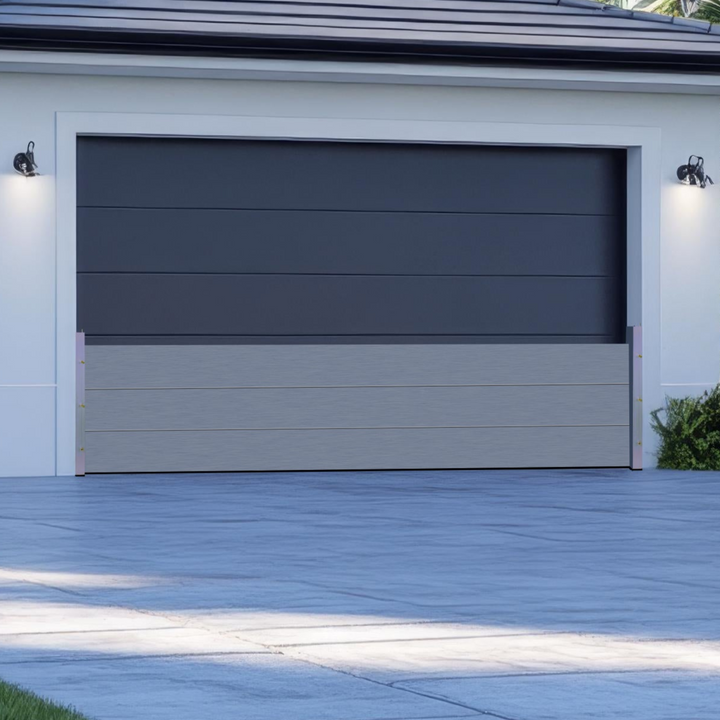

The WDS Single Garage Kit delivers commercial-level flood protection for residential garages and wider entrances. Using our modular 3-panel aluminum design, the system seals openings up to 8 ft wide and protects up to 26 inches of water height — extendable with additional panels if required.
Permanent side channels are discreetly mounted along your garage frame, allowing the barrier to be deployed quickly when flooding is expected. EPDM gaskets ensure a watertight seal along the sill, sides, and between panels, while stainless-steel bolts or clamps compress the stack securely in place.
Built to last with 6063-T5 aerospace-grade aluminum, this system is engineered for repeated use, minimal maintenance, and total peace of mind.
Specifications:
-
Width: 8 ft (2.4–2.5 m)
-
Height: Modular (typically 26 in / 2.2 ft with 3 panels)
-
Material: Aluminum 6063-T5 structural profiles
-
Panel thickness: 35 mm
-
Sealing system: EPDM gaskets (sill + sides + inter-panel)
-
Compression: Bolt or clamp locking system
-
Design water head: 0.8 m (31 in) verified by engineering analysis
-
Installation: Professional installation, testing, and user training included
Applications:
-
Single-car garages
-
Large home entrances
-
Light commercial or service bays
Includes:
-
Modular aluminum panels (3-panel standard set)
-
Side channels (left + right, pre-drilled for anchoring)
-
Hardware and seal kit
-
Professional installation and on-site training
Because Your Home
Deserves Protection.
According to FEMA, five inches of water can exceed $25,000 in damage.
Don’t wait, protect your home today and pay later with Shop Pay Installments
Single Door / Opening up to 4 feet
Single Garage / Opening up to 9 feet
Double Garage / Opening up to 18 feet
What People Say About Us
Frequently Asked Questions
Our standard 3-panel system protects up to 26 inches (2.2 ft) of water. For deeper protection, additional panels or center posts can be added.
Typically half a day for a single opening. Our certified team handles installation, testing, and training on how to deploy your system.
In most residential cases, no permit is required. If needed, WDS provides full engineered drawings for approval.
While the system is simple to operate, we recommend professional installation to ensure proper sealing and performance.
After use, simply rinse with clean water, dry thoroughly, and store indoors. We suggest inspecting the seals twice a year.
Not at all. The side channels are slim and designed to blend seamlessly with your façade, keeping a clean, modern appearance.
Yes. Our modular barriers can be installed on doors, storefronts, windows, stairwells, and more.
Each system is made of aerospace-grade aluminum with stainless steel reinforcements and EPDM gaskets for a watertight seal.
Your package includes the full barrier system, custom-fit side channels, installation, and a warranty-backed support plan.
With proper care, your WDS barrier can last for decades — ready to protect, season after season.
