Double Garage / Opening up to 18 feet
Installation Included
- Aerospace-grade 6063-T5 aluminum construction for strength and durability.
- EPDM sealing system along sill, sides, and between panels for full watertight protection.
- Modular 3-panel design — expand height by adding panels as needed.
- Permanent side channels allow quick, secure deployment when flooding is imminent.
- Clamp or bolt compression system ensures tight sealing under pressure.
- Stainless steel hardware resists corrosion and coastal conditions.
- Professional installation and training included with every system.
- Reusable and low-maintenance — rinse, dry, and store after each use.
- Designed, tested, and engineered for residential and small commercial use.

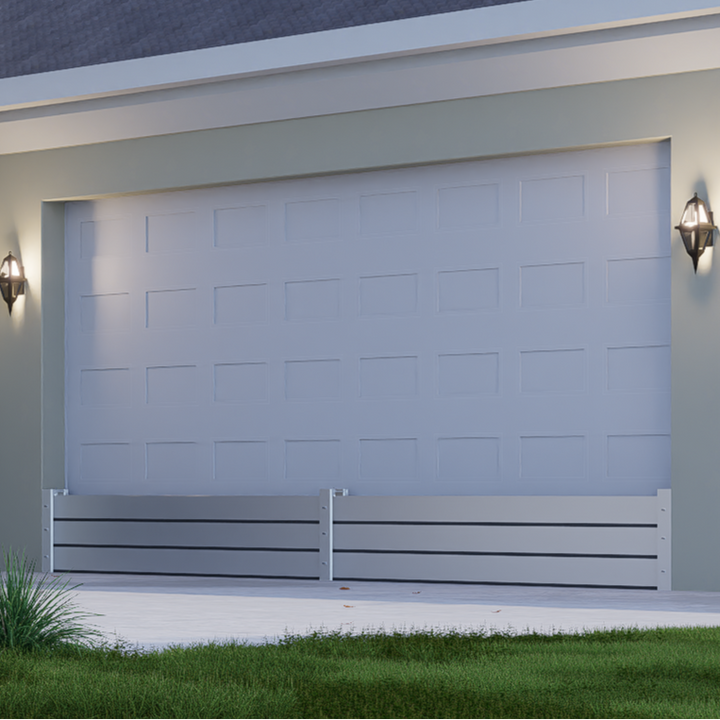

The WDS Double Garage Kit is designed for wide residential or commercial openings up to 16 ft (4.8 m). Using our proven modular aluminum system, this setup combines two 8-ft sections joined by a removable center post to ensure structural rigidity and watertight performance.
Each section uses 3 to 5 modular panels (depending on the required height), stacking to create a solid barrier that protects up to 26 inches of water — extendable for higher levels.
EPDM gaskets seal the sill, sides, and between panels, while stainless-steel compression bolts or clamps lock the system securely in place. The center post is anchored to the ground and easily removed after use, leaving your entrance clear and unobstructed.
This configuration delivers professional-grade flood defense for homes, warehouses, and small businesses that need reliable protection against heavy rainfall or coastal surge.
Specifications:
-
Width: 16 ft (4.8 m, with removable center post)
-
Height: Modular (typically 26 in / 2.2 ft, extendable)
-
Material: Aluminum 6063-T5
-
Panel thickness: 35 mm
-
Center post: 304 stainless steel reinforcement
-
Sealing system: EPDM gaskets (sill + sides + inter-panel)
-
Compression: Bolt or clamp locking system
-
Design water head: 0.8 m (31 in) verified; reinforced up to 1.06 m (42 in)
-
Installation: Professional setup, alignment, and commissioning included
Applications:
-
Two-car garages
-
Commercial storefronts or loading docks
-
Industrial or service entrances
Includes:
-
Two modular barrier sections (left and right)
-
Removable center post (stainless steel)
-
Side channels (4 total, pre-drilled for anchoring)
-
EPDM seal kit and compression hardware
-
Professional installation and on-site training
Because Your Home
Deserves Protection.
According to FEMA, five inches of water can exceed $25,000 in damage.
Don’t wait, protect your home today and pay later with Shop Pay Installments
Single Door / Opening up to 4 feet
Single Garage / Opening up to 9 feet
Double Garage / Opening up to 18 feet
What People Say About Us
Frequently Asked Questions
Our standard 3-panel system protects up to 26 inches (2.2 ft) of water. For deeper protection, additional panels or center posts can be added.
Typically half a day for a single opening. Our certified team handles installation, testing, and training on how to deploy your system.
In most residential cases, no permit is required. If needed, WDS provides full engineered drawings for approval.
While the system is simple to operate, we recommend professional installation to ensure proper sealing and performance.
After use, simply rinse with clean water, dry thoroughly, and store indoors. We suggest inspecting the seals twice a year.
Not at all. The side channels are slim and designed to blend seamlessly with your façade, keeping a clean, modern appearance.
Yes. Our modular barriers can be installed on doors, storefronts, windows, stairwells, and more.
Each system is made of aerospace-grade aluminum with stainless steel reinforcements and EPDM gaskets for a watertight seal.
Your package includes the full barrier system, custom-fit side channels, installation, and a warranty-backed support plan.
With proper care, your WDS barrier can last for decades — ready to protect, season after season.
