Door Flood Barrier · Up to 4 ft
Key Features
- Aerospace-grade 6063-T5 aluminum construction for strength and durability.
- EPDM sealing system along sill, sides, and between panels for full watertight protection.
- Modular 3-panel design — expand height by adding panels as needed.
- Permanent side channels allow quick, secure deployment when flooding is imminent.
- Clamp or bolt compression system ensures tight sealing under pressure.
- Stainless steel hardware resists corrosion and coastal conditions.
- Reusable and low-maintenance — rinse, dry, and store after each use.
- Designed, tested, and engineered for residential, multifamily and commercial buildings.

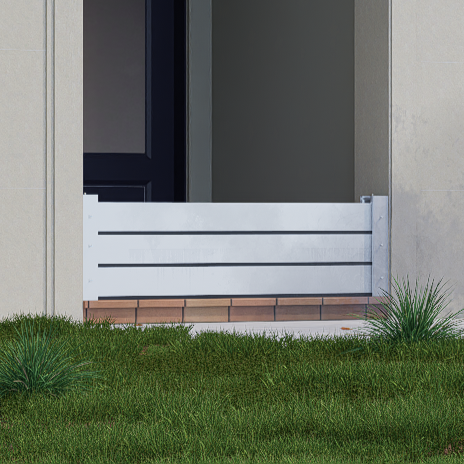

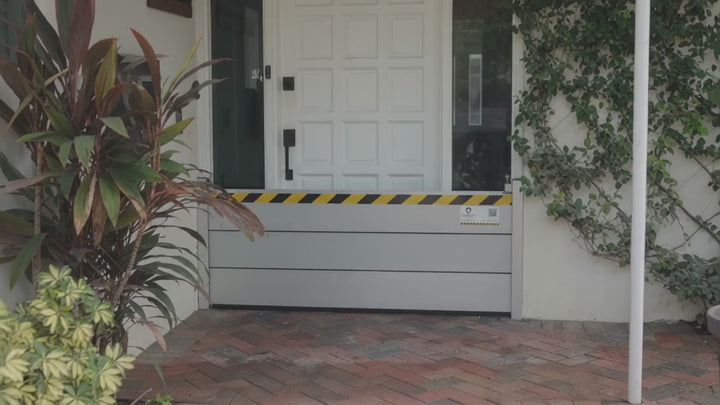

The WDS Door Flood Barrier Kit protects the openings where floodwater strikes first: building lobbies, egress doors, elevator vestibules, and waterfront home entrances. It is built for property managers, condo boards, and coastal homeowners who cannot afford water inside — FEMA estimates just 5 inches of water can cause over $25,000 in damage.
Permanent side channels mount discreetly to your existing frame. When heavy rain, a King Tide, or storm surge threatens, your staff stacks the numbered aluminum panels and compresses the EPDM gaskets in minutes — no tools, no sandbags. In stock now — we ship across the continental USA from North Miami, FL.
Marine-grade 6063-T5 aluminum with stainless-steel hardware, engineered for Florida's coastal humidity and repeated seasonal use. After each event, rinse, dry, and store — ready to protect for decades.
Specifications:
Width: 3–4 ft (0.9–1.2 m)
Height: Modular (typically 26 in / 2.2 ft with 3 panels)
Material: Aluminum 6063-T5 profiles
Panel thickness: 35 mm
Sealing system: EPDM gaskets (sill + side + inter-panel)
Mounting: Permanent side channels, bolt or clamp compression
Design water height: up to 26 in
What is included
- Barrier panels cut to your exact opening width, with permanent side channels, patent-pending top clamps and EPDM seals.
- Numbered panels and a deployment guide: one person seals the opening in under five minutes.
- Measurements confirmed before cutting: see your price with the 20-second estimator, send photos of your opening, or book a measuring visit in Miami-Dade, Broward and Palm Beach.
- Installed by our own crew locally; ships anywhere in the continental USA from North Miami, FL.
Materials and tested performance
Panel profile: extruded aluminum 6063-T5, anodized, 220 x 35 mm with 2 mm wall; EPDM seals; stainless-steel hardware.
Independently witnessed performance test by SGS (report NJINSCS2600257 Rev03, May 2026) to BS 851188-2:2019+A1:2021.
Leakage measured: 0.02 to 0.20 L/h per meter of barrier, against a limit of 40 L/h per meter.
Tested at water heights of 13, 26 and 39 in over three full cycles, 80 hours in total.
Impact test: 50 kg (110 lb) weight, zero deformation, no increase in leakage.
How the panels seal and lock
BEFORE YOU CHECK OUT
WHAT'S INCLUDED
- ✓ Aluminum panels cut to your opening · 26 in protection (3 panels)
- ✓ Side posts and patented clamps, two pressure points each
- ✓ Allen keys 12 and 5, included in the box
- ✓ EPDM seals and sill foam
- ✓ Installation included in South Florida
AFTER YOU ORDER
- 1. We confirm your measurements with you before anything is cut.
- 2. Your barrier is made to order in North Miami.
- 3. Shipped by UPS anywhere in the continental US, or installed by our own team in South Florida.
QUESTIONS BEFORE YOU BUY? (305) 239-2761 A person answers, not a bot. · info@waterdefense.us
Frequently Asked Questions
Our standard 3-panel system protects up to 26 inches (2.2 ft) of water.
Once the side channels are in place, the panels stack and lock in minutes.
Yes. The system is designed for easy deployment: the panels stack into the side channels and lock in minutes.
After use, simply rinse with clean water, dry thoroughly, and store indoors. We suggest inspecting the seals twice a year.
Not at all. The side channels are slim and designed to blend seamlessly with your façade, keeping a clean, modern appearance.
Yes. Our modular barriers can be used on doors, storefronts, windows, stairwells, and more.
Each system is made of aerospace-grade aluminum with stainless steel reinforcements and EPDM gaskets for a watertight seal.
Your package includes the full barrier system, custom-fit side channels, and a warranty-backed support plan.
With proper care, your WDS barrier can last for decades — ready to protect, season after season.
